EN1092-1 ASTM B564 Welding / Loose Plate Flange Inconel 825 Alloy UNS N08825 DIN 2.4858

Product Categories

Zhengzhou Huitong Pipeline Equipment Co.,Ltd.

Contact Now

Brand Name : HT

Model Number : inconel 825

Certification : ISO BV SGS

Place of Origin : CHINA

MOQ : 1 PC

Price : Negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 50000 PC PER MONTH

Delivery Time : 5-10 WORK DAYS

Packaging Details : WOODEN CASE PACKAGE

Product name : EN1092-1 ASTM B564 inconel 825 alloy incoloy 825 UNS N08825 DIN 2.4858 Welding/loose plate flange

Standard : DIN, ANSI, ASME, JIS, GB

Type : Slip on Flange, weld neck flange, Threaded flange, Integral Flange, Blind Flange

Material : Nickel Base Alloy

Size : 1/2"-48"

Packing : by wooden box, steel pallet or as per customers' requirement

Color : bright silver, Nature, silver or as customer's requests., Black, Yellow/Silver

Pressure : 150#-2500#

Contact Now

EN1092-1 ASTM B564 inconel 825 alloy incoloy 825 UNS N08825 DIN 2.4858 Welding/loose plate flange

1. DIN EN 1092-1 Flange Types

01 (Plate [slip-on] flanges for welding)	13 (Hubbed threaded flanges)
02 (Loose plate flanges with weld-on plate collar)	21 (Integral flanges)
04 (Loose plate flanges with weld-neck collar)	32 (Weld-on plate collars)
05 (Blank [blind] flanges)	33 (Lapped pipe ends)
11 (Weld-neck flanges)	34 (Weld-neck collars)
12 (Hubbed slip-on flanges for welding)	36 (Pressed collar with long neck)
	37 (Pressed collar)

2. EN 1092-1 Incoloy 825 Flange Specifications

Type	:	Inconel 825 Flange Standard EN 1092-1
Size	:	½” (15 NB) to 48″ (1200NB) / DN10-DN2000
Standard	:	ANSI B16.5, ANSI B16.47, ANSI B16.36, ANSI B16.48, BS 4504, EN1092, UNI 2277/2278, DIN, JIS, SABS1123, GOST-12820
Class	:	150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc.
DIN	:	DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636,DIN2637, DIN2638, DIN2673
BS	:	BS4504 , BS4504, BS1560, BS10
Pressure	:	PN6, PN10, PN16, PN25, PN40, PN64, PN100, PN160
In Form	:	SORF, WNRF, BLRF, SWRF, LAP Joint, Threaded, Reducing, Spectacle, etc
Specialize	:	As per drawing
Coating/Surface Treatment	:	Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized
Connection Type	:	Ring Type Joint, Lap-Joint Face, Raised Face, Flat Face, Large Male-Female, Small Male-Female, Large
		Tongue & Groove, Small Tongue & Groove
Flange Face Type	:	Flat Face (FF), Raise Face (RF), Ring Joint (RJT)
Dimensions	:	EN 1092, ANSI B16.5, ANSI B16.47, Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
Packing	:	No Fumigate or Fumigate Plywood/Wood Pallet or Case
Usage	:	Oil Field, Offshore, Water System, Shipbuilding, Natural Gas, Electric Power, Pipe Projects etc.

3. ASTM B564 Incoloy 825 Flanges Chemical Composition

Grade	C	Mn	Si	S	Cu	Fe	Ni	Cr
Incoloy 825	0.15 max	1.00 max	0.50 max	0.015max	0.50 max	6.00 – 10.00	72.00 min	14.00 – 17.00

4. ASTM B564 Incoloy 825 Flanges mechanical properties

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
Incoloy 825	8.47 g/cm3	1413 °C (2580 °F)	Psi – 95,000 , MPa – 655	Psi – 45,000 , MPa – 310	40 %

5. Equivalent Grades for Incoloy 825 Flanges

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN
Incoloy 825	2.4816	N06825	NCF 825	NA 13	МНЖМц 28-2,5-1,5	NC15FE11M	NiCr15Fe

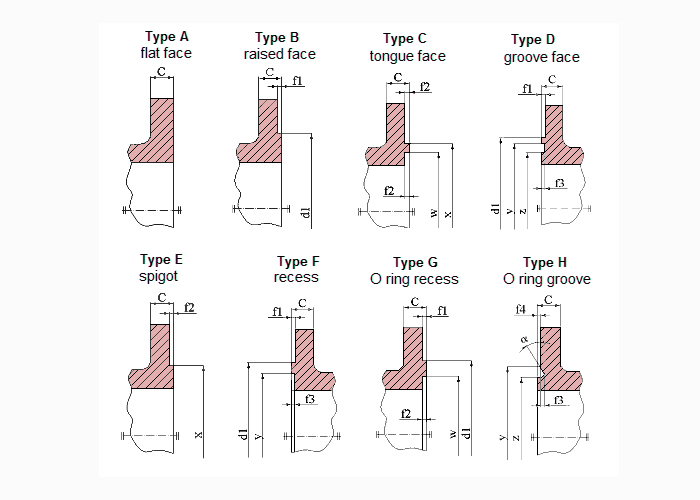

6. Flange facing types according to DIN EN 1092-1

7. Types and Drawings of EN 1092-1 Incoloy 825 Flange

EN1092-1 ASTM B564 Welding / Loose Plate Flange Inconel 825 Alloy UNS N08825 DIN 2.4858
