Swivel / Girth / Reducing / Orifice Flange , Nickel Base Alloy Hastelloy C22 UNS N06022 Anchor Flange

  • 1
  • 2

Brand Name : HT

Model Number : Nickel Alloy Hastelloy C22 Alloy C22 ASTM B564 UNS N0602

Certification : ISO SGS BV TUV CE,etc.

Place of Origin : China

MOQ : 1pc

Price : Negotiation

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 1000000000pcs per month

Delivery Time : 1~60days

Packaging Details : plywood case,pallet,etc.

Type : Anchor Flange/Swivel/Girth/Reducing/Orifice Flange

Standard : DIN,ANSI,ASME,JIS,GB

Material : Nickel Base Alloy (Inconel Alloy,HastelloyC22

Size : 1/2"-48"

Pressure : Class150/300/600/900/1500 etc

Process : CNC Processing,Casting,forged

Application : Power generation,gas and oil pip,Pipe Tube Connection,Chemical and petrochemical,Industry

Sample : For free,Avaliable,but you need to pay for the freight charge for the samples

Contact Now

Anchor flanges are forged fittings installed on pipelines and embedded in reinforced concrete blocks.

They are used to restrain or limit main line thermal expansion or contraction and transfer built-up stresses to

external structures or larger foundation.

Anchor flanges can be installed in many different ways, such as suction and discharge laterals of pumping station

at river crossing, points of directional change, connections to equipment at meter run and to secure subsea piping and

risers to platform structure.

Swivel / Girth / Reducing / Orifice Flange , Nickel Base Alloy Hastelloy C22 UNS N06022 Anchor Flange

Swivel / Girth / Reducing / Orifice Flange , Nickel Base Alloy Hastelloy C22 UNS N06022 Anchor Flange





The flanges are supplied with end weld bevels to match the pipeline wall thickness.

The most common materials for anchor flanges are SA 105 and high-yield stress such as SA 694, F52, F60, F65 and F70.

Size range can cover up to 42”.

Each anchor flange needs a specific design and calculation in according to ASME VIII Div.1 and to process datasheet supplied by the customer.



Ordering information:

- Pipeline wall thickness

- Design code

- Design temperature

- Installation temperature

- Maximum axial load

HT pipe is able to calculate the flange dimensions and to manufacture them in many materials,

such as carbon steel, stainless steel and high-yield stress material.



Swivel / Girth / Reducing / Orifice Flange , Nickel Base Alloy Hastelloy C22 UNS N06022 Anchor Flange

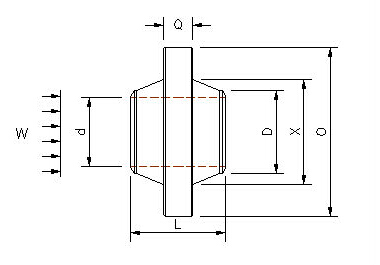

Nom Pipe Size Dia of Bore Pre Beveled Hub Dia For 40%F Temperature Change For 90%F Temperature Change
Dim O Dim Q Dim L Dim X Dim O Dim Q Dim L Dim X
6 According to
customers'
requirements.		 6.75 9.5 0.63 2.88 7 11.25 1.13 3.63 7
8 8.75 12.13 0.75 3 9 14.63 1.38 3.88 9
10 11 14.88 0.88 3.13 11.13 17.13 1.5 4 11.13
12 13 17.75 1 3.5 13.25 19.25 1.63 4.25 13.25
14 14.25 19.63 1.13 3.75 14.5 20.5 1.75 4.5 14.5
16 16.25 22.38 1.31 4.19 16.3 22.5 1.81 5 16.63
18 18.25 24.63 1.38 4.63 18.63 24.63 1.94 5.5 78.63
20 20.31 26.63 1.5 4.88 20.63 26.75 2 6 20.75
22 22.31 28.63 1.63 5.13 22.63 28.75 2.13 6.25 22.75
24 24.38 30.63 1.69 5.44 24.63 31 2.25 6.75 24.88
26 26.38 32.75 1.75 5.88 16.75 32.88 2.31 7.13 26.88
28 28.38 34.88 1.81 6.19 28.88 35 2.38 7.5 29
30 30.44 36.88 1.94 6.56 30.88 37 2.5 8 31
34 34.5 41 2.06 7.19 35 41 2.75 8.75 35
36 36.5 43 2.13 8 37 43 2.88 9.63 37
