NECK FLANGE ASTM B564 UNS: N10675 ASME B16.5 GROOVED RF 150PSI SCH10S 12"

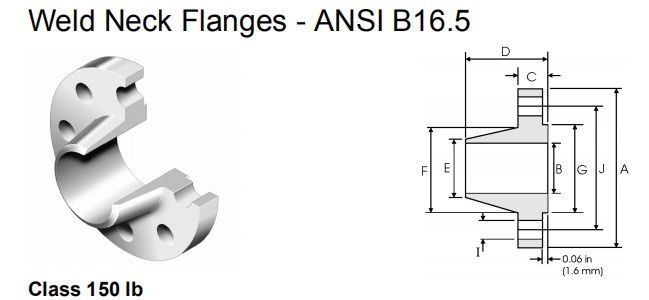

| Pipe | Flange Specification | Hub Data | Raised Face | Drilling Specification |
Norminal
Pipe
Size | | A | B | C | D | E | F | G | H | I | J |
Outside
Diameter | Overall
Diameter | Inside
Diameter | Flange
Thickness
min | Overall
Length | Diameter at
weld bevel | Hub
Diameter | Face
Diamter | Number of
Holes | Bolt Hole
Diameter | Diameter
of Circle
of Holes |
in
mm | in
mm | in
mm | in
mm | in
mm | in
mm | in
mm | in
mm | in
mm | in
mm |
| 12 | 12.75
323.8 | 19.00
482.6 | 12.88
327.1 | 1.250
31.75 | 4.500
114.3 | 12.75
323.8 | 14.38
365.3 | 15.00
381.0 | 12 | 1.000
25.40 | 17.00
431.8 |
1. Flange Specification:
2. Hastelloy B3 Datasheet:
UNS: N10675
ASTM: B 333, B 335, B 619, B 622, B 626, B 366, B 472
ASME: SB-333, SB-335, SB-619, SB-622, SB-626, SB-366
| | Ni | Cr | Mo | Mn | Cu | Si | C | S | P | Ti | Al | Co | Nb | V | Fe |
| MIN | 65.0 | 1.0 | 27.0 | – | – | – | – | – | – | – | – | – | – | – | 1.0 |
| MAX | – | 3.0 | 32.0 | 1.0 | 0.2 | 0.1 | 0.01 | 0.01 | 0.03 | 0.2 | 0.5 | 3.0 | 0.2 | 0.2 | 3.0 |
A. Resists hydrochloric acid at all concentrations and temperatures
B. Withstands wet HCl gas, sulfuric, acetic and phosphoric acids
C. Excellent resistance to pitting and to stress corrosion cracking
A. Acetic acid production, initial phase in presence of iodide catalyst
B. Methyl methacrylate production with hot 98 H2SO4
C. Production of herbicides, insecticides, ethylene glycol, ethyl benzene
Density: 0.333 lb/in3 Melting Range: 2500- 2585°F Electrical Resistivity: 651 Ohm-circ mil/ft
| Temperature, °F | 200 | 400 | 600 | 800 | 1000 | 1200 | 1400 | 1600 |
| Coefficient* of Thermal Expansion, in/in°F x 10-6 | 5.7 | 6.1 | 6.3 | 6.5 | 6.6 | 6.5 | 7.1 | 7.6 |
| Modulus of Elasticity Dynamic, psi x 106 | 30.9 | 30.1 | 29.3 | 28.3 | 27.2 | 26.5 | 24.9 | 23.3 |
3. Product Showcase:

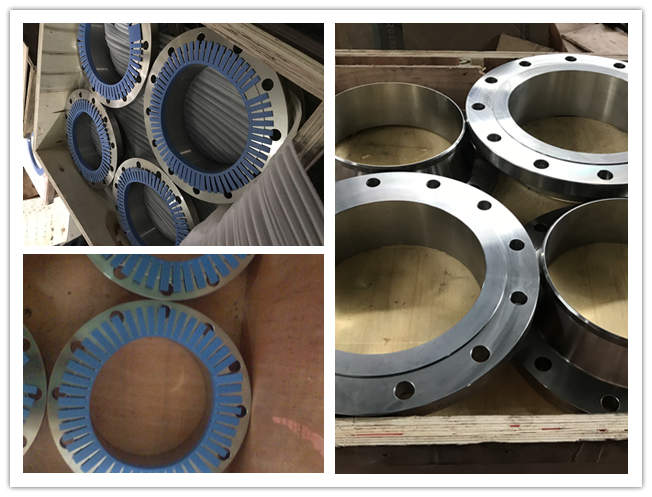

4. Packaging Details

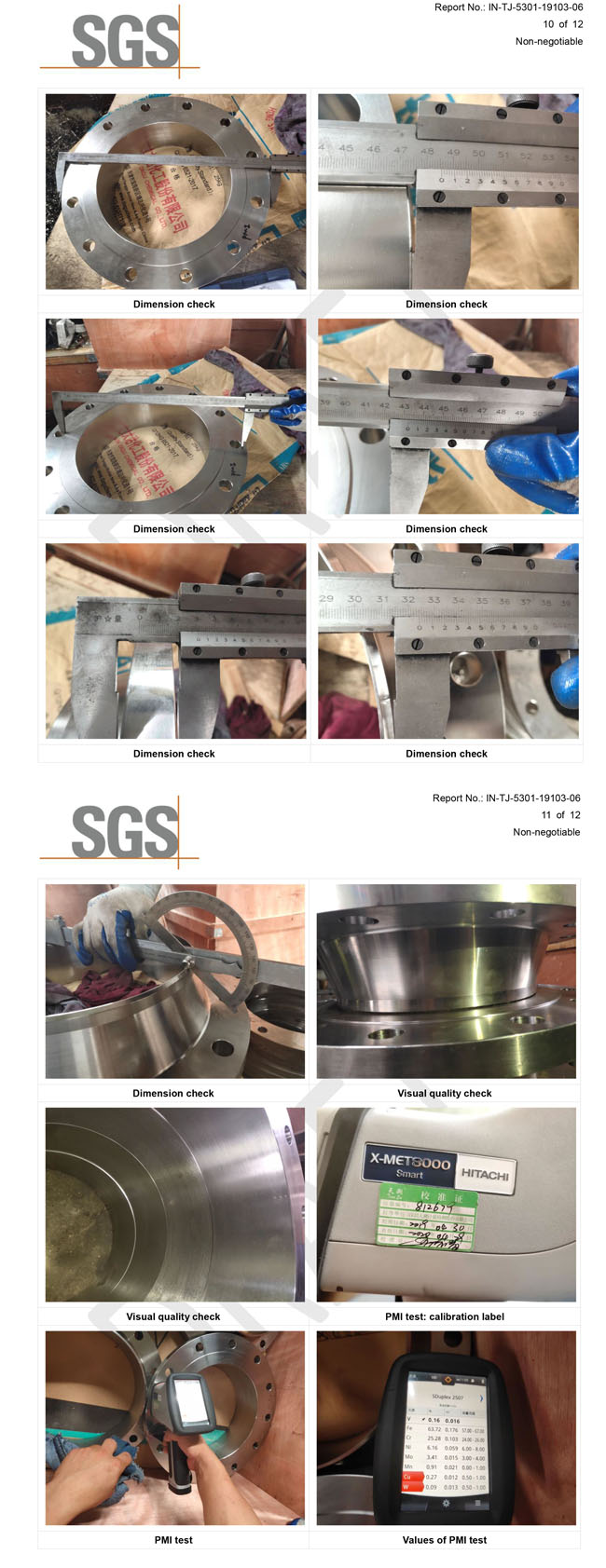

5. Quality Assurance
